• Ballast-WL-921-GA

    • Product Model: Ballast-WL-921-GA

      Product features:
      1. WL - 921 die-casting aluminum shell, built-in MDE approach based - 1401 circuit board;
      2. All products potting process;
      3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
      4. The constant power output;
      5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
      6. Waterproof, shockproof, satisfies the requirement of automobile and motorcycle use.

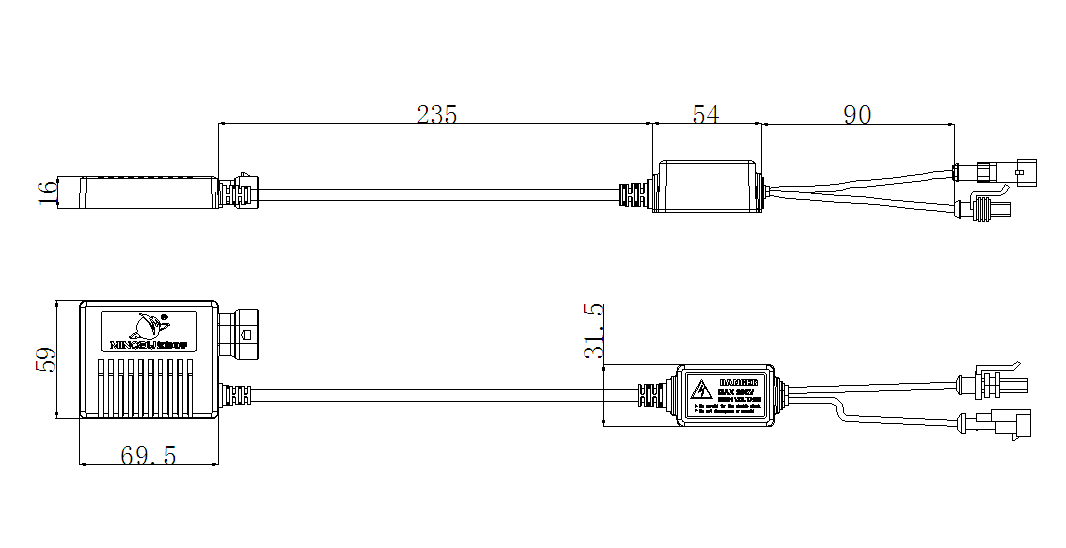

    View PictureBallast-WL-921-GA
    • Introduction
    • Details
    • Specification
    Product features:
    1. WL - 921 die-casting aluminum shell, built-in MDE approach based - 1401 circuit board;
    2. All products potting process;
    3. The working voltage 9 ~ 16 v, with reverse protection, open circuit protection, short circuit protection, the overpressure protection function;
    4. The constant power output;
    5. Using the environment temperature range - 40 ℃ ~ 85 ℃;
    6. Waterproof, shockproof, satisfies the requirement of automobile and motorcycle use.

    Scope of application:
    This product is suitable for automobile, motorcycle headlamps modified.

    　　　　　　　　35W Mingdu HID　　　　　　　　　　　　　　　　55W Halogen Lamp

    Model

    WL-921 -GA

    Specification

    12V/35W

    Terminal

    AMP

    Color

    Black

    Input Voltage

    9~16V DC

    Start Current

    5.5±0.5A

    Stable Input Current

    3.5±0.2A

    Input High Voltage Protection

    16.5±0.5V

    Rated Input Power

    42.5±2.5W

    Rated Output Power

    35±2.0W

    Output Frequency

    250Hz±10%

    Air Striking Distance

    ≥12mm

    Output Short Circuit Protection

    Automatically stop working within 1s while short circuit

    Output Open Circuit Protection

    Automatically stop working within 3s while open circuit

    Working Efficiency

    ≥80%

    Working Temperature

    -40℃～85℃

    lifetime

    ≥3000 hours
